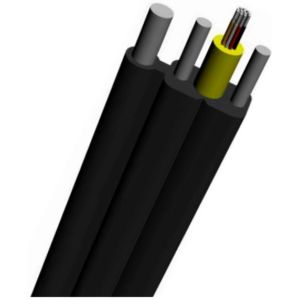

GJYXCH FTTH Indoor Fiber Optic Cable Single Mode 1-4CORES G657A1
Aerial Drop Wire
Self-Supporting Figure 8 Distribution Cable
Description
Fiber Type: G.652, G.655 or G.657 single-mode fiber, A1a or A1b,
OM3 or OM4 multi-mode fiber, or other types of fiber.
Jacket Material: Environmental low smoke zero halogen flame
retardant polyolefin(LSZH) or other color of the clients’
requirement, environmental halogen flame retardant
polyolefin(ZRPO), or other contracted material. Jacket Color:
(Including color of fiber) meets the requirements of relevant
standards, or other contracted color.
Standards
Comply with Standard YD/T 1258.4, ICEA-596, GR-409, IEC 60794, etc.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 12.5D
Dynamic 25D
Characteristics
Good mechanical and environmental characteristics.
Flame retardant characteristics meet the requirements of relevant
standards. Soft, flexible, easy to lay and splice, and with big
capacity data transmission.
Meet various requirements of market and clients.
Applications
Used in access network or as access cable from outdoor to indoor in
customer premises network.
Used as access building cable in premises distribution system,
especially used from outdoor to indoor inaerial access cabling.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled Launch | Effective Modal | 10Gb/s Ethernet | Min Bending |
| Bandwidth | Bandwidth | link length | Radius |
| | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| BI-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| BI-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
Structure and Technical Specifications
| Fiber | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance |
| (N/100mm) | (N/100mm) |
| Count | (mm) | (kg/km) | Short Term | Long Term | Short Term | Long Term |
| 6-12 | 3.0x9.0 | 27.0 | 1200 | 600 | 1000 | 500 |
Note: This datesheet can only be a reference, but not a supplement to
the contract. Please contact us for more detailed information.
