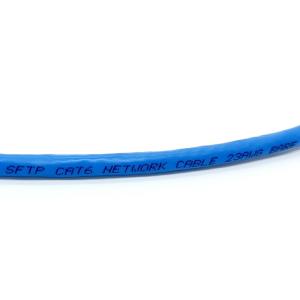

Bulk CAT6 Ethernet Cable , SFTP CAT6 Shielded Lan Cable 1000ft AL
Foil and CCA Braiding
| Basic Construction | Material | Diameter (mm) |
| Conductor | BC | 23AWG |
| Insulation | PE | 1.04 |
| Pairs | 4Pairs | |
| First Shield | AL Foil | |
| Second Shield | CCA/AL Braiding | 64/80/96*0.12 |
| Jacket | PVC/LSZH | 6.5 |
|
| BASIC CHARACTERISTICS | | | | |
| Temperature Rating | -20℃ to 60℃ |
| Dielectric Breakdown | 2500V |
| DC Resistance/Unbalance | 28.6Ω/1000’Max/5% Max |
| Characteristics Impedance | 100Ω |
| Other Electric Performance | Frequency | Attenuation | Return Loss | Pair to Pair |
| (MHz) | (dB/100m) | (dB/100m) | Next | ELFEXT |
| (dB/100m) | (dB/100m) |
| 1 | 2 | 20 | 75.3 | 63.8 |
| 4 | 3.8 | 23 | 66.3 | 51.7 |
| 8 | 5.3 | 24.5 | 61.8 | 45.7 |
| 10 | 6 | 25 | 60.3 | 42.8 |
| 16 | 7.6 | 25 | 55.8 | 37.7 |
| 20 | 8.5 | 25 | 55.8 | 37.7 |
| 25 | 9.5 | 24.3 | 54.3 | 35.8 |
| 31.25 | 10.7 | 23.6 | 52.9 | 33.9 |
| 62.5 | 15.4 | 21.5 | 48.4 | 30 |
| 100 | 19.8 | 20.1 | 45.3 | 29 |
| 155 | 25.2 | 18.8 | 42.4 | 28.1 |
| 200 | 29 | 18 | 40.8 | 27.8 |
| 250 | 32.9 | 17.3 | 39.3 | 23.8 |
| 400 | 40.8 | 16.9 | 39.3 | 18.8
|
Product Structure
Conductor: High purity oxygen free copper wire (99.99%), with low
resistance, fast speed, high transmission rate and so on.
Insulation material: High density polyethylene(HDPE), with signals
attenuation decrease, fast speed, high transmission rate.
Jacket material: Imported poluvinyl chloride (PVC) material. with
wear resistance, oil resistant, acid and long life and other
characteristics.
Cross member: HDPE cross member to seperate the four pairs makes
twisted pair more stable and degradation by the change of twisted
distance.
Production Description:
Rate temprature: 60℃, 75℃, 90℃ Reference Standard: TIA/ EIA-568B
Bare soled copper conductor ,RoHS Complied PVC, PE or LSOH Jacket
Complies to TIA/ EIA- 568B&ISO/ IEC 11801
Application: Ethernet 10Base-T, 100Base,100Base-T4,1000Base-
T,10GBase-T.
Application:
Twisted Cable for digital communication is used in building wiring
systems in the workplace communications leads to terminal and
handover distribution frame beteen the voice transmission wiring,
as well as residential cabling user traffic leads to the terminal
and handover distribution frame between the voice transmission
system.
This prduct is widely applied to a variety of network cabling
structure and transmission media, large-capacity and security, high
privacy at local area network environment.
network cable data transfer Level
Standard (Name)
| Maximum Bandwidth | Maximum Distance | Maximum Data Rate | Notes |
| Categary 5e | 100MHz | 100Meters | 1Gbps |
Still commonly used
|
| Category 6 | 250MHz | 100Meters | 1Gbps,10Gbps(limited distance) | Used in new buildings |
| Category 6a | 500MHz | 100Meters | 10Gbps |
Data centres and commercial
|
| Category 7 | 600MHz | | 10Gbps |
Fully shielded components. Non modular connectors
|
| Category 7a | 1000MHz | | 10Gbps |
fully shielded solution
|
| Category 8 | 1600-2000MHz | | 40Gbps |
in development |
Networking Lan Cable 305M Easy Pull Box Packing
If you have technical support from an engineer, please let us know
the type of cables you need, the inner conductor, the braiding
coverage, the jakcet material and color, the packing length and
design, and the application. We will help you choose the most
suitable cable.
If you are not sure about certain specifications of the electric
cables, please let us know your inquiry and we are very happy to
give you professional technical advice and support services. Our
company offer specific cables and wires consulting, design, OEM and
manufacturing based on the customer's requirements and application
scenarios to help customers create more business opportunities.
